All in One Solar Street Light

SOLAR PRODUCTS CATALOGUE
SOLAR PRODUCTS CATALOGUE
SOLAR PRODUCTS CATALOGUE
SOLAR PRODUCTS CATALOGUE

All in One Solar Street Light

comes with Integration of photo voltaic module, charging controller and LifePO4 battery combined with high output LED’s and human infrared sensor brings multiple features such as high luminance, long lifespan, minimal maintenance and easy installation.

Integrated Solar LED Street Lights are becoming very popular in India to illuminate the streets due to its compact design and integrated features. The bulky conventional street lights are getting replaced by the fancy Street lights with advanced features like Motion sensors and Specific spot lighting features. Integrated All in One Solar LED Street Light produces its own power and uses lowest power consumption technology. Therefore, it is ideal for remote/ inaccessible areas. It can be used at roads, streets, railway gates, parks, boundary walls, hotels, hospitals, etc.

FEATURES

  • Latest LifeP04 Lithium Battery Technology.
  • 5 years battery Warranty.
  • 24 hrs monitoring using camera without external power.
  • Environmental Sensibility.
  • Smart Controller.
  • Motion Detection.
  • Easy Installation
  • Theft Proof
  • Maintenance Free
  • Auto On/Off

ALL IN ONE SOLAR LED STREET LIGHT

Street Light

Model

20 Watt

30 Watt

40 Watt

60 Watt

Solar Panel

Type

High Efficiency Monocrystalline Silicon

Max Power

18V/40W

18V/60W

18V/70W

18V/100W

Battery

Capacity

12.8V/18AH

12.8V/24AH

12V30AH

12.8V/42AH

Type

LifePO4

LED Lamp
(with Motion Sensor)

Max Power

12V 20W

12V 30W

12V 40W

12V 60W

LED Chip Brand

Bridgelux LED Chip

Lumen (LM)

2900

4350

5800

8700

Life Time

50000 hours

Viewing Angle

140

140

140

140

Charge Time

By Sun

6 hours with strong sunshine

Working

Hours

12 hour, over 3-4 rainy days

Lamp

Material

Aluminum Alloy

Protection

IP 65

Working Temperature

-20C ~ 70C

Sensor Distance

In Radius

8m

8m

No Sensor

No Sensor

Weight

Net Weight

7.2 Kg

15 Kg

15.5 Kg

18.5 Kg

Gross Weight

8.5 Kg

16.5 Kg

16.8 Kg

20.5 Kg

Mounting Height

Range (m)

 5 – 6 m

5 – 6 m

6 – 8 m

6 – 8 m

Space Between Lights

Light Range(m)

15 – 18 m

18 – 20 m

 20 – 25 m

25 – 30 m

Warranty

2 years

Solar Inverter

1000-3000TL Inverters are designed for residential rooftop application

FEATURES

  • Maximum Efficiency of 96.5% and wide input voltage range.
  • DC Switch Optional.
  • High Frequency.
  • Compact Design.
  • MTL - String.
  • Bluetooth/RF technology/Zigpee.
  • Sound Control.
  • Fanless cooling concept.
  • Easy Installation.
  • High Reliabilty.
SOLAR PRODUCTS CATALOGUE

Technical Specifications will coming soon.

Solar ON -Grid Rooftop Kits

SOLAR PRODUCTS CATALOGUE

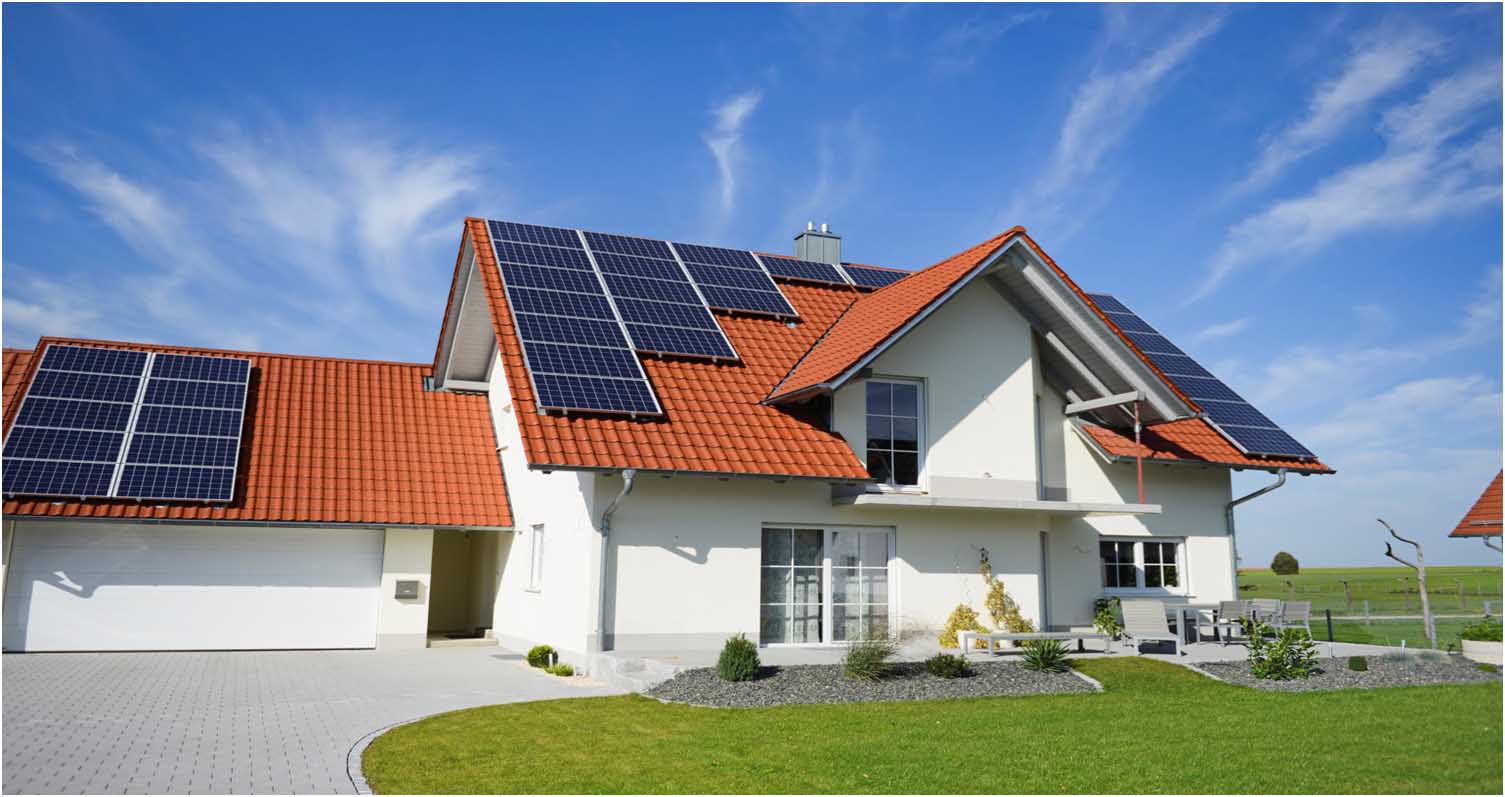

Solar On-Grid Rooftop Kits

Solar on-grid rooftop kit is a solar system that generates electricity and is connected to the utility grid. The electricity produced by the system is routed to this grid or the electrical service provider from where it is used to run the various appliances. A grid-connected PV system consists of solar panels, one or several inverters, a power conditioning unit and grid connection equipment. Batteries are not used hence it is cheaper and easier to install than the off grid system.

Net Metering

The grid connected rooftop system can work on net metering basis wherein the beneficiary pays to the utility on net meter reading basis only. Alternatively two meters can also be installed to major the export and import of power separately. The mechanism based on gross metering at mutually agreed tariff can also be adopted.

Feed-in-Tariff

In feed-in-tariff the Government offers a tariff for purchase of the solar power generated from the solar plants.

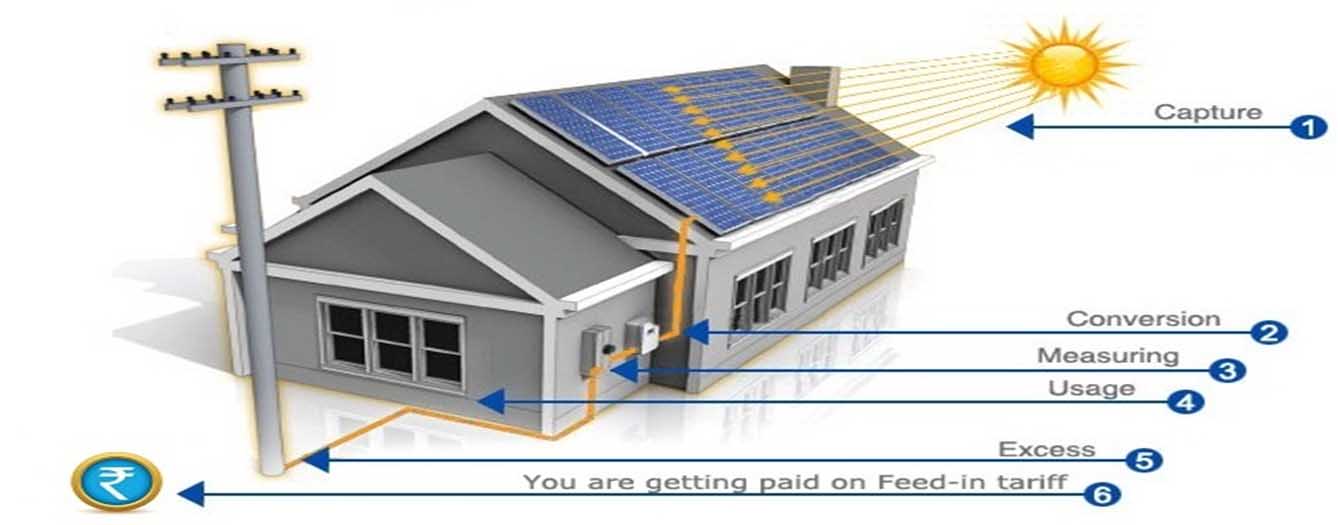

HOW DOES SOLAR ON-GRID SYSTEM WORKS?

  • CAPTURE: Solar Panels convert sunlight into DC electricity.
  • CONVERSION: Inverters turn DC electricity into usable AC electricity.
  • MEASURING: Electricity Smart Meters measure how much electricity is used by and how much is sent to the grid.
  • USAGE: Solar Energy can be used to power any household electrical appliance.
  • EXCESS: Solar Energy that isn’t used by you is fed back into the grid to be used by the utility company.
  • Feed-in Tariff: Not only you save money from generating your own electricity, any power your system feeds back into the grid will be credited to you on your next electricity bill.

ADVANTAGES

  • No losses for transmission and distribution.
  • Free Electricity.
  • Minimal Maintenance.
  • No requirement of additional land.
  • Reduced emissions.
  • Cost-effective
  • Reliable
  • Flexible configurations.
  • Source of income generation.
SOLAR PRODUCTS CATALOGUE

Technical Specifications will coming soon.

Solar Off -Grid Rooftop Kits

SOLAR PRODUCTS CATALOGUE
SOLAR PRODUCTS CATALOGUE

Solar Off -Grid Rooftop Kits

SOLAR OFF-GRID ROOFTOP KIT is a solar electricity system with battery backup. During the day the sun shines and charges the batteries as well as supplies power to your home. During the evening or on rainy days when the sun isn’t shining you use the power stored in the batteries.

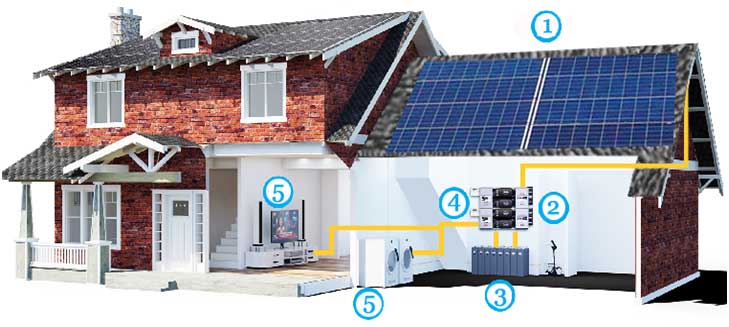

HOW DOES SOLAR OFF-GRID SYSTEM WORKS?

Off Grid Solar Plant is not connected to the grid, it is stand-alone system where only Sun’s energy is used and no power is taken from the electricity provided by the electricity distribution company

  • Solar Panel: Solar panel converts solar energy into electric energy (DC Electricity).
  • Charge Controller: Regulates the charge of solar electricity into the batteries.
  • Batteries: It stores energy received from Solar panel via charge controller. Helps to provide energy when there is no solar energy available i.e. Nights and Cloudy Days.
  • Solar Inverter: Convert DC electricity into AC electricity same quality as the utility electricity and regulates the AC charge to the batteries from the utility or generator source.
  • Loads: Powered by Solar energy.

ADVANTAGES

  • No access to utility grid.
  • Become energy self-sufficient.
  • The advantage is for situations where a stable grid id not easily accessible or where one wants to be totally disconnected from the grid.

Product Code

SOFG4-01

SOFG4-02

SOFG4-03

SOFG4-04

SOFG4-05

SOFG4-06

SOFG4-08

General Terms

½ KW

1 KW

2 KW

3 KW

4 KW

5 KW

7 KW

Capacity

500VA – (12V)

1000VA – (24V)

2000VA – (36V)

3000VA – (48V)

4000VA – (48V)

5000VA – (72V)

7Kwp

Polycrystalline Module- A Grade

500Wp

1KWp

2KWp

3KWp

4KWp

5KWp

7000VA- (240V)

Battery

12 Volts, 200Ah

24 Volts, 200Ah

48 Volts, 200Ah

48 Volts, 200Ah

72 Volts, 200Ah

96 Volts, 200Ah

168 Volts, 200Ah

Mounting Structure

(MS-Steel) Painted

(MS-Steel) Painted

(MS-Steel) Painted

(MS-Steel) Painted

(MS-Steel) Painted

(MS-Steel) Painted

(MS-Steel) Painted

DC Cables-20 Feet, (7Mtr)

7 Mtr (Standard), 4 Sq mm cable

7 Mtr (Standard), 4 Sq mm cable

7 Mtr (Standard), 4 Sq mm cable

7 Mtr (Standard), 4 Sq mm cable

7 Mtr (Standard), 4 Sq mm cable

7 Mtr (Standard), 4 Sq mm cable

7 Mtr (Standard), 4 Sq mm cable

Solar Photovoltaic Modules

SOLAR PRODUCTS CATALOGUE

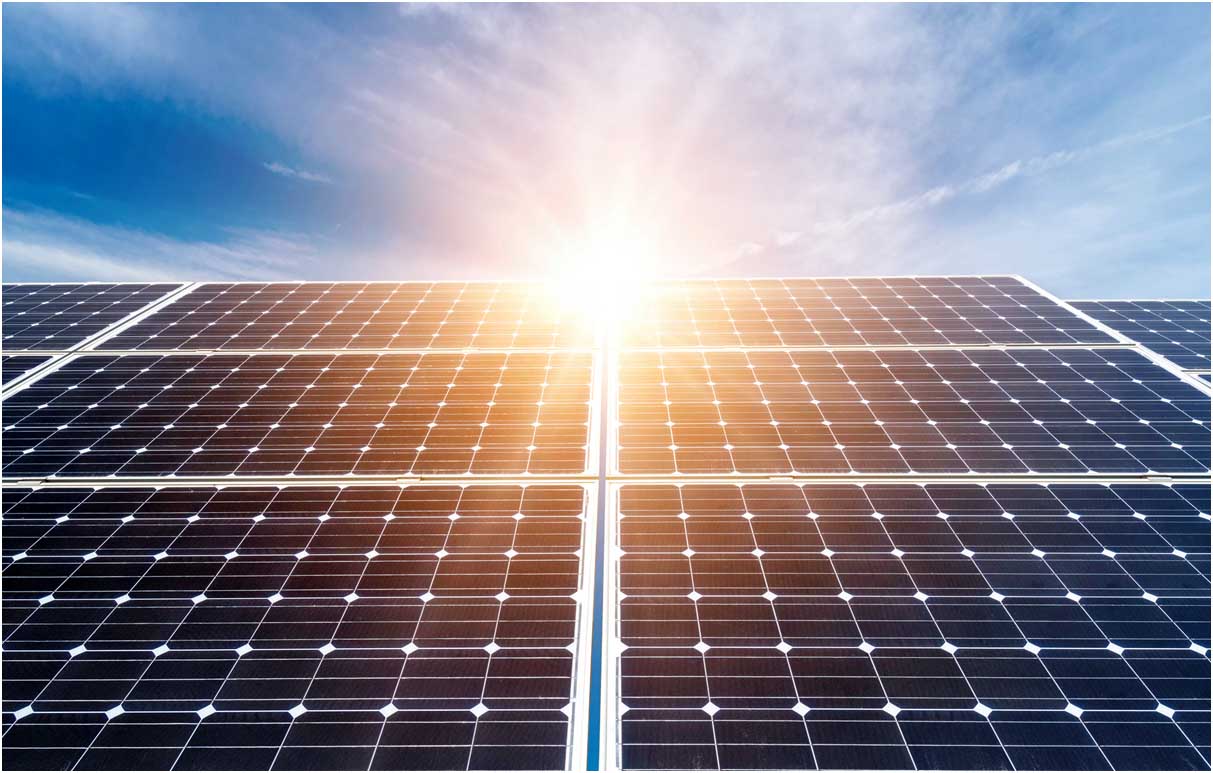

Solar Photovoltaic Modules

At RESPONSE, we supply high-quality and high-efficiency multi crystalline photovoltaic modules.

Product Range – 3 Wp to 300 Wp.

PERFORMANCE

High quality, high transmissivity, Tempered and toughened glass to ensure high light absorption.

High-reliability with guaranteed O/+3 W peak power classification.

Technical Specifications will coming soon.

DC Solar Pump

DIRECT DC SOLAR WATER PUMP CONTROLLER NOT REQUIRED

SOLAR PRODUCTS CATALOGUE

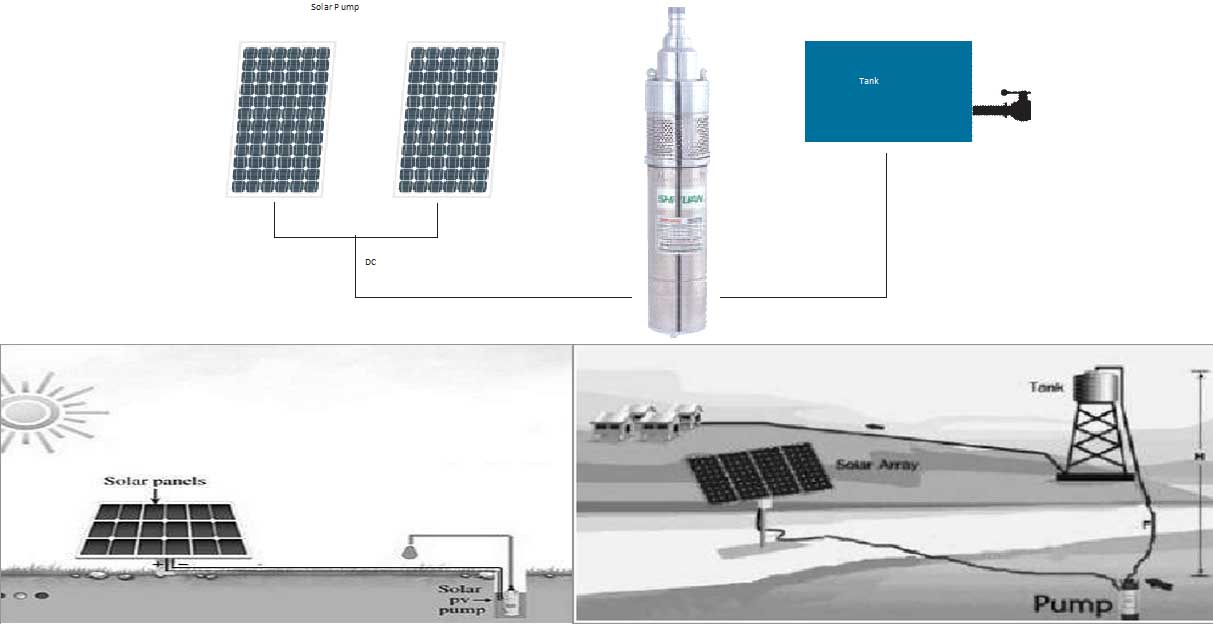

DC Solar Pump

Solar pumping systems work anywhere the sun shines. Pumping water is a sensible and effective use of solar electric power. During the hot months, when water requirements are highest, a solar pump will provide a reliable water source for a farm.

A solar pumping system is available for almost all applications where an electric pump can be used. Because solar energy varies from one location to another, and over the course of a day, system design is important. Adequate water storage ensures that water is available whenever needed, and balances daily variations in water supply and demand. Thus a small pump only running when the sun shines, plus water storage, can often provide all that is required for water supply."

Irrigation

A solar water pump is an ideal tool for farmers. They can move or transfer water from nearby sources such as lake or rivers to irrigate the crops using solar water pump. Farmers and avid gardeners will be able to save on their irrigation budget for using solar water pump, instead of fuel-powered pumps."

Livestock

Ranch owners can also benefit a lot from using solar water pump. They can provide water for their animals in a cost-effective and easy way. The solar water pump can generate water from deep wells, streams, pond, and even pipelines."

Garden Fountains

Aside from functional purposes, a solar water pump can also be used as a cost- effective way to generate water for your garden fountains. Many household owners use their water pumps as fountains which give the house a different yet refreshing ambiance. You will be able to save a huge amount of energy especially if you want your water fountains work for several hours a day. In fact, you can turn it on continuously and not worry about paying huge power bills."

Technical Specifications will coming soon.

DC Solar Pump

SOLAR PRODUCTS CATALOGUE

DC Solar Pump

Home Supply

Many environmentalists agree that using solar water pump at home is one of the best ways to go "green." For domestic water use, a booster pump should be used especially if the water source is shallow.""

Large Scale Watering System for Commercial Establishments Solar

Water pump is now also being used in huge cities. Various large establishments such as hotels, apartments, condominiums and even government buildings implement solar water pumps in order to save on their power expenses."

Water Treatment Systems

In areas where the quality of water is very poor, government and private companies use water purification process which requires water pumping. Solar water pumps can be used as a cost-effective substitute for fuel-powered pumping machines."

Technical Specifications will coming soon.

DC Solar Pump

SOLAR PRODUCTS CATALOGUE

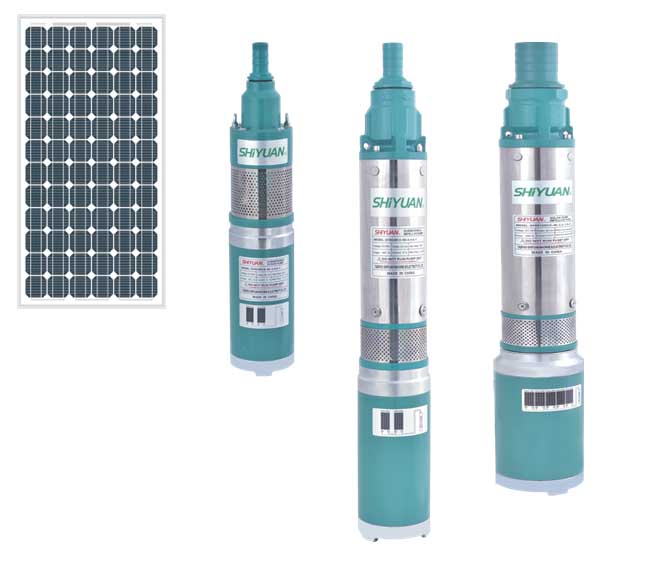

THE 2ND GENERATION DIRECT DC SUBMERSIBLE SOLAR WATER PUMP CONTROLLER NOT REQUIRED

SOLAR PRODUCTS CATALOGUE

DC Solar Pump

Pump Type Item No. Voltage Current Power Outlet Max Flow Max Head Cable Connection Mode
    SCREW PUMP SYDC30V/S-30-3-0.3-1 30V 8.3A 250W 25MM 3M³/H 30M 20         Series Connection
SYDC36V/S-40-3-0.3-1 36V 7A 300W 25MM 3M³/H 40M 20
SYDC48V/S-60-3-0.4-1 48V 8A 400W 25MM 3M³/H 60M 20
SYDC48V/S-60-3-0.4-1 48V 8A 400W 25MM 3M³/H 60M 20
SYDC72V/S-70-3-0.6-1 72V 8.3A 600W 25MM 3M³/H 70M 20
    IMPELLER PUMP SYDC30V/I-20-3-0.25-1 30V 8.3A 250W 25MM 3M³/H 20M 20
SYDC36V/I-30-3-0.3-1 36V 8.3A 300W 25MM 3M³/H 30M 20
SYDC48V/I-50-3-0.4-1 48V 8A 400W 25MM 3M³/H 50M 20
SYDC72V/I-60-3-0.6-1 72V 8.3A 600W 25MM 3M³/H 60M 2
SYDC96V/I-70-3-0.7-1 96V 7.3A 700W 25MM 3M³/H 70M 20
